Is an Addressable Input Module a Zone Input?

It's an issue of the words being used, semantics; that's what makes the real difference between an addressable input module on a Signaling Line Circuit (SLC) and a zone input on a Fire Alarm Control Panel (FACP). The circuit wiring is a detached, secondary issue.

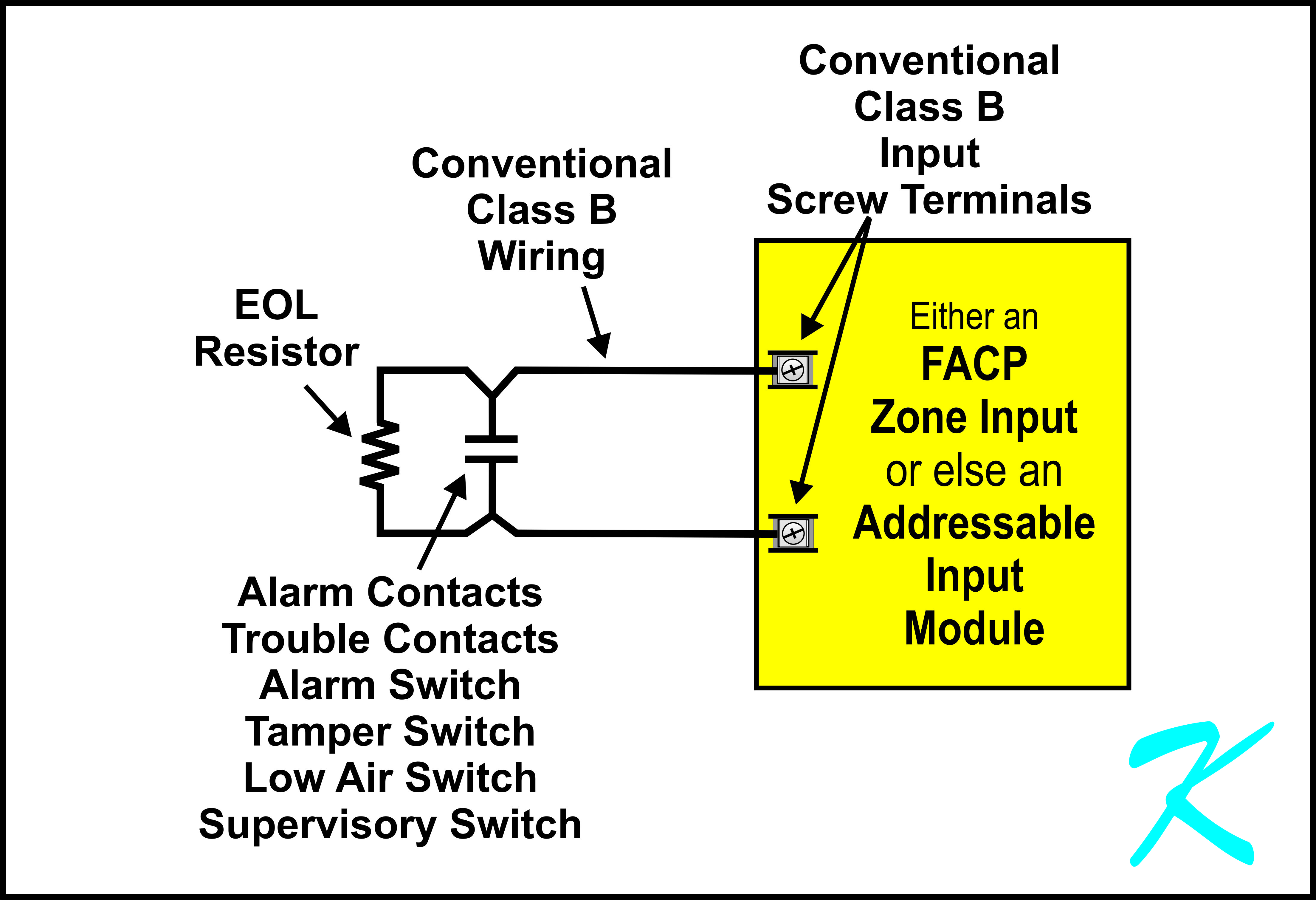

In either case, using an identical copper wiring layout for both types of inputs, the wiring is usually a conventional Class B Initiating Device Circuit (IDC). Sometimes, as an alternative, the wiring is a conventional Class A IDC.

The only real differences between the input to an addressable input module and a panel's zone input are the value of the end of line resistor, and whether or not the module involved can support smoke detectors.

The Original Use of the Word "Zone"

A "Zone Input" on a conventional Fire Alarm Control Panel (FACP) was originally considered a fire-fighting zone. When firefighters arrived, they would look at the panel to see which fire-fighting zone of the building they should head to.

That meant that the Zone Input was restricted to the fire detection devices located in that fire-fighting zone. To make sure that the firefighters wouldn't go to the wrong part of the building, any fire detection devices in different fire-fighting zone had to be connected to a different Zone Input.

Some Manufacturers Call the Module a Zone Input

Usually, the manufacturer calls the module an addressable input module. However, there are some instances where a manufacturer has referred to the module, or even an addressable detector or device, as an addressed zone input.

Fire-Fighting Zone or Specific Location

----- ZONED DISPLAY - When a fire alarm's display says "SMOKE 3RD FLOOR WEST WING", the arriving firefighters know that they need to go to the third floor, west wing to find the fire.

----- ADDRESSED DISPLAY - When the fire alarm's display says "SMOKE 3RD FLOOR BY APARTMENT 302", the arriving firefighters know that they need to go the third floor by apartment 302.

When the information shown to the arriving firefighters shows a Zoned Display, a general area to go to, the display is good; when the information shown to arriving firefighters shows an Addressed Display, a specific area to go to inside a fire-fighting zone, the display is usually considered better.

The Fire Marshal Makes the Decision

The real person that can make the decision to show a fire-fighting zone on the display, or a specific fire-fighting location on the display is the Authority Having Jurisdiction (AHJ) . . . the person who is managing the firefighters, the person who is in charge of training the firefighters - the fire marshal.
